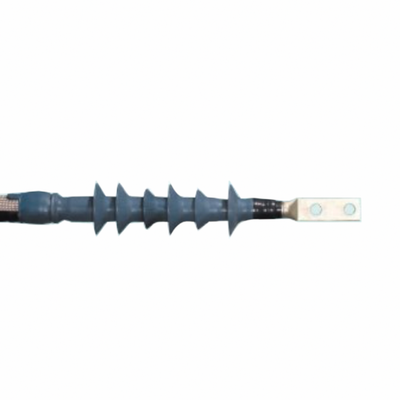

Medium Voltage Cold Shrink Termination, Outdoor, Elaspeed, Cable Range 350-750MCM (5KV ) + 4/0-500 (15KV)
Description
Indoor/Outdoor polymer terminations available for 5kV, 15KV, 25/28KV and 35KV applications. The Elaspeed outdoor PCT (with sheds) and indoor PICT (without sheds) are medium voltage cold shrink polymer terminations designed for fast, easy and reliable i nstallation. The Elaspeed terminations shrink evenly on the cable as the inner support core is removed. No complicated assembly or heat is required. Simply pull out the support core and allow the termination to shrink in order to create a tight void fr ee interface and superior moisture seal between the termination and the cable
Features
- Covers provides a uniform stress relief in critical areas.
- Broad range of cable sizes and voltages with the fewest number of units.
- Meets or exceeds the stringent requirements mandated by the IEEE standard 48 for class 1 accuracy.
Cable Range:
350-750 (5KV 133%)
4/0-500 (15KV 133%)
Cable Insulation Diameter Range:
1.20"-2.10"
Number of Sheds:
4
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are provided for reference only and may not reflect exact product specifications. Please consult the Product Technical Details for accurate information.
