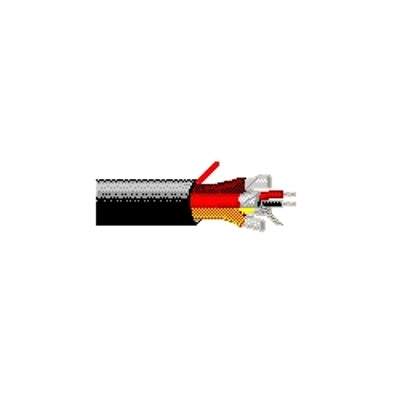

Belden 1217B, 22AWG, 4p, Datalene Insulation, Flexible Low-Capacitance Cable

Belden 1217B, 22AWG, 4p, Datalene Insulation, Flexible Low-Capacitance Cable

by GLOBAL Cable & Wire
SKU BGCW941
$3.89 - $3.89
$3.89
$3.89 - $3.89
$3.89

General Description
Belden 1217B - 22 AWG stranded (7x30) TC conductor, Datalene® insulation, individually shielded with Beldfoil® (100% coverage), numbered/color-coded PVC jackets, pair jackets and shields bonded to both strip simultaneously with automatic stripping equipment.

Belden 1217B - Specifications
Size:                         22 AWG
Pairs: 4
Stranding: 7x30
Conductor Material:  TC - Tinned Copper
Outside Diameter: .458 inches
Jacket Color: Black
Jacket Material: PVC - Polyvinyl Chloride
Shield Type: Foil Shielded - Alum/Mylar 100%
