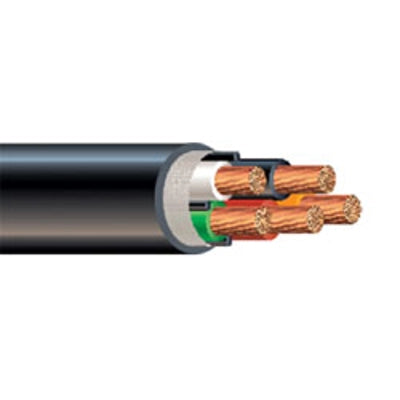

6 AWG 4C Type W Portable Power Cable
2000V, 90°C (-40°C), Oil and Sunlight Resistant.
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.
Color:
Black
Applications:
Type W Portable Power Cable is suitable for use in industrial and light-to-medium mining applications, heavy-duty service, temporary power supply cables, motor, battery and generator leads. Also suitable for mobile and portable electrical equipment.
Compliances:
- UL Listed - Type W per UL 1650
- Conductors are manufactured in accordance with ASTM and B-172
- Made in accordance with ICEA S-75-381
- NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
- MSHA accepted, P-136-135, LR65300
- CSA or c(UL) Certified as applicable
- RoHS Compliant
- Meets FT-5 Flame Test
Conductor:
Fully annealed stranded bare copper per ASTM B-172.
Insulation:
EP rubber insulation
Jacket:
CPE rubber jacket. Jackets are reinforced by a braid or serve of synthetic material.
Specifications*:
Size: 6 AWG
Number of Conductors: 4
Conductor Strand: 259
Nominal Insulation Thickness: 0.060 inches / 1.52 mm
Outside Diameter: 1.105 inches / 28.07 mm
Current AMPS: 87
Net Weight: 0.781 lbs per ft
