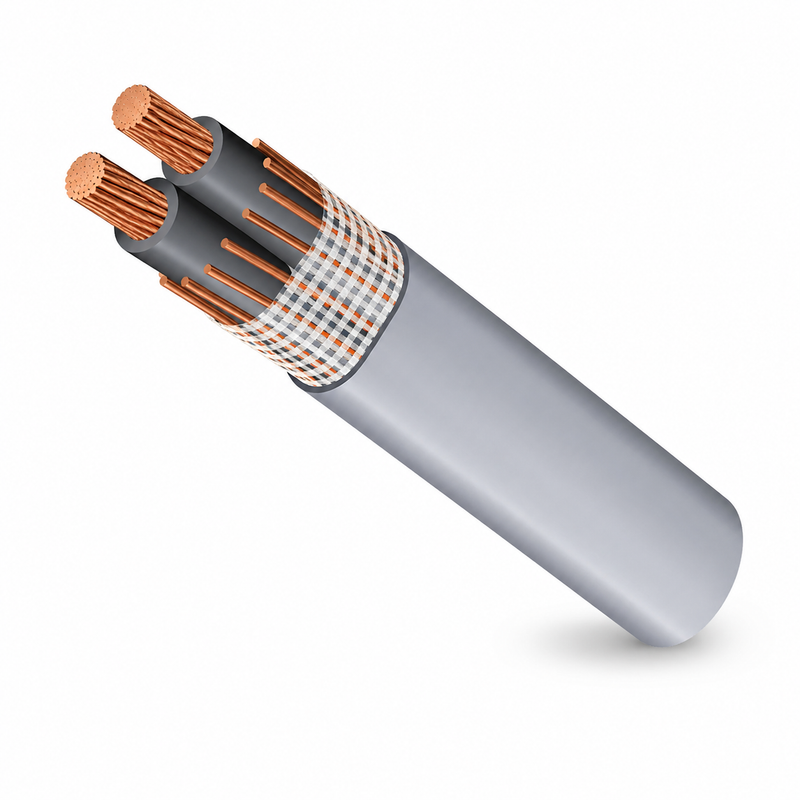

6-6-8 Copper Service Entrance Cable SEU

Cut to length - sold by the foot. Enter the desired footage in the QTY box. Minimum 25' to maximum 1000'.

Applications: Type SE, Style SEU Service Entrance Cable is a round and flat electrical cable used in all instances where service entrance cables are allowed. It is most often used to connect utility power to the meter base. This cable is suitable for wet and dry locations with temperatures not exceeding 90°C. The voltage rating of the electrical cable is 600 volts. Also known as: Copper SEU Service Entrance Cable, SEU Cable, SEU Service Cable, Copper Service Cable, Unarmored Service Entrance Cable.

Conductor: Annealed soft copper conductors.

Insulated Phase Conductors (2 Conductors): 6 AWG, 7-strand annealed soft copper equipped with cross-linked polyethylene (XLPE) Type XHHW-2 insulation. Rated for up to 90°C in wet or dry locations.

Equipment Ground Conductor: 8 AWG, 8-strand bare soft copper, applied as a concentric neutral ground around the insulated phase conductors.

Jacket: Gray, sunlight-resistant polyvinyl chloride (PVC) jacket. This dielectrically strong outer layer is highly resistant to corrosion, abrasion, chemicals, and mechanical impact.

Standards:

• ASTM - All applicable standards

• UL Standard 44 for XHHW-2 conductors

• UL Standard 83 for THHN/THWN conductors

• UL Standard 854 Service Entrance Cables

• Federal Specification A-A-59544

• NFPA 70: National Electrical Code (2011 Edition)

• RoHS / REACH Compliant

Specifications:*

• Size AWG: 6-6-8

• Conductor Material: Annealed Soft Copper

• Insulation Material: XLPE (Type XHHW-2)

• Outside Diameter: 0.659 x 0.416 inches

• Allowable Ampacity: 75 Amps @ 90°C

• Net Weight: 0.281 lbs/ft (281 lbs per 1,000 ft)

*Data provided on this page is subject to change based on different manufacturers' variances.

*Images are for reference only.
