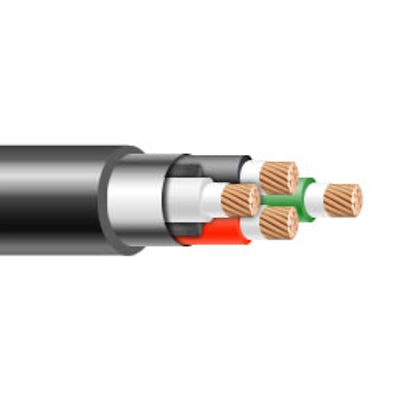

250 MCM 4C Type W Portable Power Cable

2000V, 90°C (-40°C), Oil and Sunlight Resistant.

Cut to length - Sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Type W Portable Power Cable is suitable for use in industrial and light-to-medium mining applications, heavy-duty service, temporary power supply cables, motor, battery and generator leads. Also suitable for mobile and portable electrical equipment.

Compliances:
- UL Listed - Type W per UL 1650
- Conductors are manufactured in accordance with ASTM and B-172
- Made in accordance with ICEA S-75-381
- NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
- MSHA accepted, P-136-135, LR65300
- CSA or c(UL) Certified as applicable
- RoHS Compliant
- Meets FT-5 Flame Test

Conductor:
Soft drawn flexible stranded tinned copper

Insulation:
EP rubber insulation

Jacket:
CPE rubber jacket. Jackets are reinforced by a braid or serve of synthetic material.

Specifications*:

Size: 250 MCM
Number of Conductors: 4
Conductor Strand: 627
Nominal Insulation Thickness: 0.095 inches / 2.41 mm
Outside Diameter: 2.53 inches
Current AMPS: 352
Net Weight: 5.38 lbs per ft
