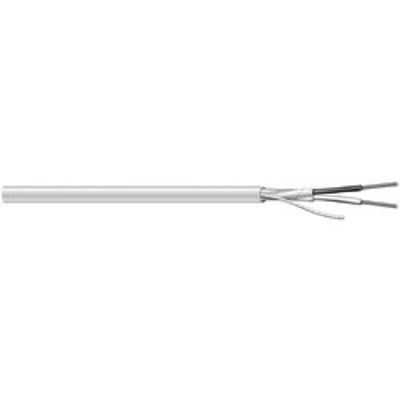

20 AWG, 3 Conductor, Communication and Control Cable, Foil Shield, 500ft or 1000ft Spool

General Cable - C2528A, UL 2093, NEC Type CL2 and CM (UL) c(UL) CMH

Color:
Gray

Applications:
Recording studios and sound stages, Broadcast and sound systems, Computers, Industrial equipment control, Suggested voltage rating: 300 or 600 volts

Compliances:
- UL Style 2092 (UL: 60°C, 300V)
- UL Style 2093 (UL: 60°C, 300V)
- UL Style 2094 (UL: 60°C, 300V)
- UL Style 2106 (UL: 60°C, 600V)
- UL Style 2107 (UL: 60°C, 600V)
- UL Style 2464 (UL: 80°C, 300V)
- NEC Article 725 Type CL2 (UL: 75°C)
- NEC Article 800 Type CM (UL: 75°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- CSA CMH (CSA: 60˚C)
- Passes CSA CMH Flame Test

Conductor:
Fully annealed, solid or stranded tinned copper per

Insulation:
Color Coded, Polyethylene, Polypropylene

Jacket:
PVC, gray
-20°C to +75°C

Specifications*:

Size: 20 AWG
Number of Conductors: 3
Conductor Stranding: 7/28
Nominal Insulation Thickness: 0.016 inches
Nominal Jacket Thickness: 0.030 inches
Outside Diameter: 0.210 inches
Nominal Cap. pF/ft: A 21.0,  B  37.5
