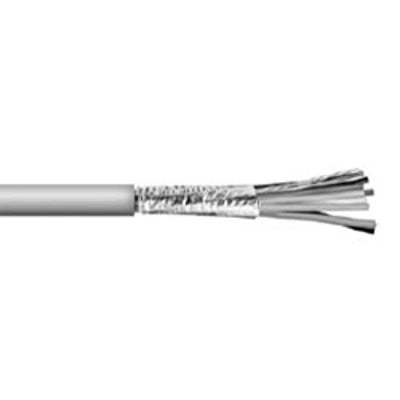

20 AWG, 10 Conductor, Computer Cable, Foil Shield, 500ft Spool

General Cable C0785A, UL 2464, NEC Type CMR (UL) c(UL)

Color:
Gray

Applications:
Computer interconnections, Data transmission, Control circuits, Industrial equipment control, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts

Compliances:
- NEC Article 800 Type CMR (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- CSA CMG (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMH Flame Test

Conductor:
Fully annealed, stranded tinned copper per

Insulation:
Semi-Rigid Polyvinyl Chloride (S-R-PVC)

Shield:
100% aluminum/polyester, 25% overlap, foil facing out, Stranded tinned copper drain wire

Jacket:
PVC, gray
-20°C to +80°C

Specifications*:

Size: 20 AWG
Number of Conductors: 10
Conductor Stranding: 7/28
Nominal Insulation Thickness: 0.016 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.345 inches
Nomonal Cap. pF/ft: A-37.0, B-66.0
