***STRIPED COLORS ARE NON-STOCK ITEMS & MAY TAKE 4-5 WEEKS TO SHIP***

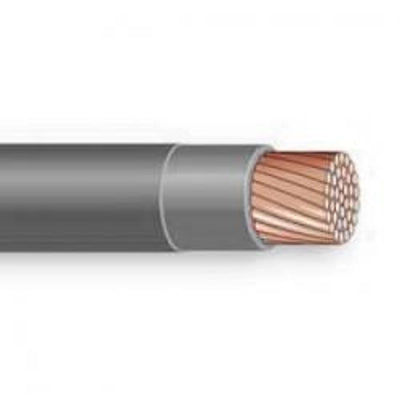

18 AWG MTW/UL1015 Hook-Up Stranded Wire, 600V.  500ft or 1000ft Spool.

Applications:
18 AWG UL1015 Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Conductor:
Tinned Copper

Insulation:
Polyvinyl Chloride (PVC)

Standards:
UL recognized AWM Style 1015 per 758. Passes VW-1 vertical flame test. CSA TEW or AWM

Specifications*:

Size: 18 AWG
Number of Strands: 16
Temp: 105°C
Insulation Thickness: 0.031 inches
Outside Diameter: 0.11 inches
Weight: 0.010 lbs per ft
Voltage: 600V

*Data provided on this page is subject to change based on different manufacturers variances.
