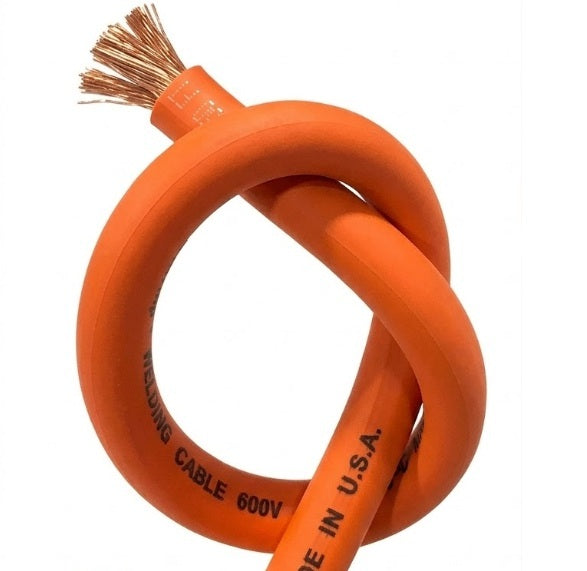

1/0 AWG FlexWhip™ EPDM Welding Cable (Orange)

1/0 AWG FlexWhip™ EPDM Welding Cable (Orange)

EPDM, Welding Cable, Single Conductor, 600V

Available in 250' and 500' reels.

Color: Orange

Applications:

• Provides superior flexibility specifically for welding leads, stingers/whips, and grounds.
• Designed for intermittent use; not intended for continuous use.
• NOTE: Do not use for 600 volt in-line applications.
• Product is for welding applications only.

Also Known As: Flex Whip , stinger cable , whip cable , ground cable , extra flexible welding cable.

Features:

• Industry's Most Flexible: Engineering specifically designed for maximum maneuverability in the field.
• High-Flex Conductor: Utilizes highly flexible stranded, annealed 34 gauge bare copper.
• Durable Jacket: High-grade EPDM resists cuts, tears, abrasion, grease, oil, water, and flame.
• Enhanced Stripability: A paper separator is included to make stripping easier for the user.
• PermaPrint™ Technology: Features indent printing that is customizable and lasts the lifetime of the cable.
• Wide Temperature Range: Rated for operating temperatures from -50°C to +105°C (-58°F to +221°F)
• Sequentially Marked: Includes sequential marking for easy measurement and inventory management.

Compliances:

Industry Compliances:

• National Electrical Code Article 630 Electric Welders
• ISO 9001: 2015 Certified
• ISO 14001: 2015 Certified

Flame Test Compliances:

• Meets the UL VW-1 flame test outlined in UL1581

Other Compliances:

• RoHS Compliant
• MADE IN USA

Conductor:

• Fully annealed stranded bare copper.
• Class M stranding and SAE J1127 Stranding.

Insulation: High-grade RoHS compliant EPDM.

Jacket: Durable Orange EPDM.

Options: Available pre-assembled with connectors.

Specifications*:

• Size: 1/0 AWG
• Number of Conductors: 1
• Conductor Strand: 19/123/34
• Nominal Insulation Thickness: 2.03 mm / 0.080 inches
• Outside Diameter: 13.51 mm / 0.532 inches
• Net Weight: 370 lbs per 1000 ft

*Data provided on this page is subject to change based on different manufacturers variances.
