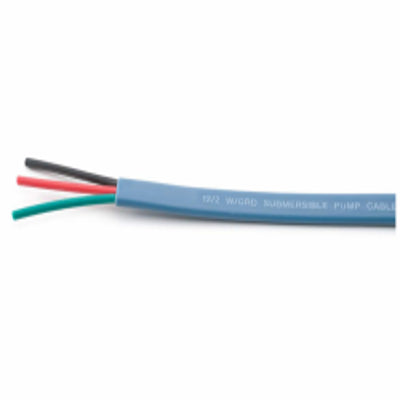

12/3 w/ Grnd Ice Blue Flat Jacketed Submersible Pump Cable, 500ft or 1000ft Spools

12 AWG 3 Conductor w/ Grnd Ice Blue Flat Jacketed Submersible Pump Cable, 500ft or 1000ft Spools.

***Ships within 1-2 Business Days***

Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.

Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -65° C to 90° C
Sequential footage marking

Standard:
UL Listed as Deep Well Submersible Pump Cable.

Construction:

Conductors:
Annealed bare stranded copper conductors

Insulation:
Polyvinyl Chloride (PVC)

Jacket:
Blue PVC Jacket

Specifications*:

Size: 12 AWG
Number of Conductors: 3
Stranding: 65
Ground Wire Size: 12 AWG
PVC Insulation Thickness: 0.030 inches
Jacket Thickness: 0.030 inches
Nominal Cable Dimensions: 0.224 x 0.692 inches
Weight per foot: 0.121 lbs

*Stock photo image displayed.  Please order based on product description.
*Data provided on this page is subject to change based on different manufacturers variances.
