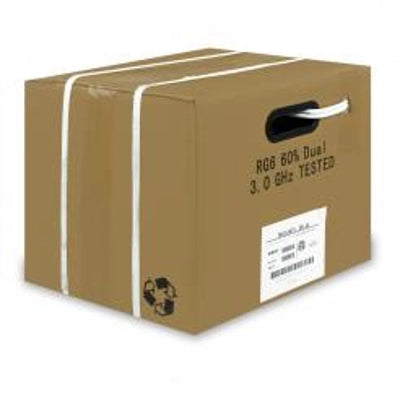

RG-6/U 60% BC Dual Siamese w/ Messenger Cable, 500 ft Spool
SKU RG6URWH3DBCM
Original price
$167.00
-
Original price
$167.00
Original price
$167.00
$167.00
-
$167.00
Current price
$167.00
RG-6/U 60% BC Dual Siamese w/ Messenger Cable, 500 ft Spool
Applicable Standards:
Reference Standard: SCTE IPS-SP-001, UL 1655, UL 13, UL 444, RoHS
SPECIFICATIONS*
Conductor: Bare Copper
Size: 18 AWG
Insulation: Foamed PE
Insulation Thickness: 1.78 mm / 0.07 inches
Insulation Diameter: 4.57 mm / 0.18 inches
Braid Shield: Aluminum Wire
Braid Shield Coverage: 57%
Jacket: PVC
Jacket Thickness: 0.51 mm / 0.02 inches
Cable Diameter: 6.90 mm / 0.27 inches
Messenger: 1.15 mm / 0.27 inches
Weight: 37 lbs
ELECTRICAL CHARACTERISTICS*
Dielectric Strength: 3.0 kV/min
Impedance: 79-82 Ohms
Capacitance: 47-53 pF/ft
Conductor DCR@20°C: 22.5 ohms/km
Velocity of Propogation: 82%
| ELECTRICAL PERFORMANCE | |
| Frequency(MHz) | Attenuation(dB/100m) |
| 5 | 1.90 |
| 55 | 5.25 |
| 250 | 11.02 |
| 300 | 12.14 |
| 350 | 13.15 |
| 400 | 14.11 |
| 450 | 15.03 |
| 500 | 15.88 |
*Data provided on this page is subject to change based on different manufacturers variances.
