Choosing the right wire size is important when working on an electrical circuit. The wire needs to safely handle the amount of electricity flowing through it. If the wire is too small for the load, it can get hot and may cause problems.

One of the most common questions is about the wire gauge for 20 amp 30 amp 50 amp circuits. The answer is usually based on the amount of current the circuit needs, but other things can matter too.

The length of the wire, the material used, the type of equipment, and the way the wire is installed can all affect the final choice.

Here is a simple guide to help you understand the common wire sizes for these three circuits.

What Does Wire Gauge Mean?

Wire gauge simply tells you how thick a wire is. The American Wire Gauge (AWG) system is commonly used for this.

One thing that can be confusing is that a smaller gauge number means a thicker wire. For example, 10 AWG is thicker than 12 AWG.

Thicker wires can generally carry more current. That is why higher-amp circuits usually need thicker wires.

20 Amp Wire Size

For many standard 20 amp circuits, 12 AWG copper wire is commonly used.

A 20 amp circuit can be used for things such as outlets, appliances, and other equipment that needs more power than a typical 15 amp circuit.

The 20 amp wire size can still depend on the situation. If the wire needs to travel a long distance, for example, voltage drop may need to be considered.

If you are checking the wire size for 20 amp breaker, do not look at the breaker number alone. The wire material, length, installation conditions, and local electrical rules can also affect the choice.

30 Amp Wire Size

A 30 amp circuit needs a wire that can handle more current than a typical 20 amp circuit.

For many common applications, 10 AWG copper wire is used for a 30 amp circuit.

The 30 amp wire size may be used for certain appliances, equipment, and other electrical loads.

Again, this is a general guide rather than a rule for every situation. The correct choice can change depending on the length of the wire, temperature, conductor material, and type of equipment.

When checking the wire size for 30 amp breaker, make sure the wire is suitable for the complete circuit.

50 Amp Wire Size

A 50 amp circuit carries more current, so it generally needs a thicker wire.

For many common applications, 6 AWG copper wire is used for a 50 amp circuit.

The 50 amp wire size can vary depending on the equipment and installation. The length of the cable, wire material, temperature, and installation method may all need to be considered.

If you are installing a 50 amp circuit for a particular appliance or piece of equipment, check its instructions before buying the wire.

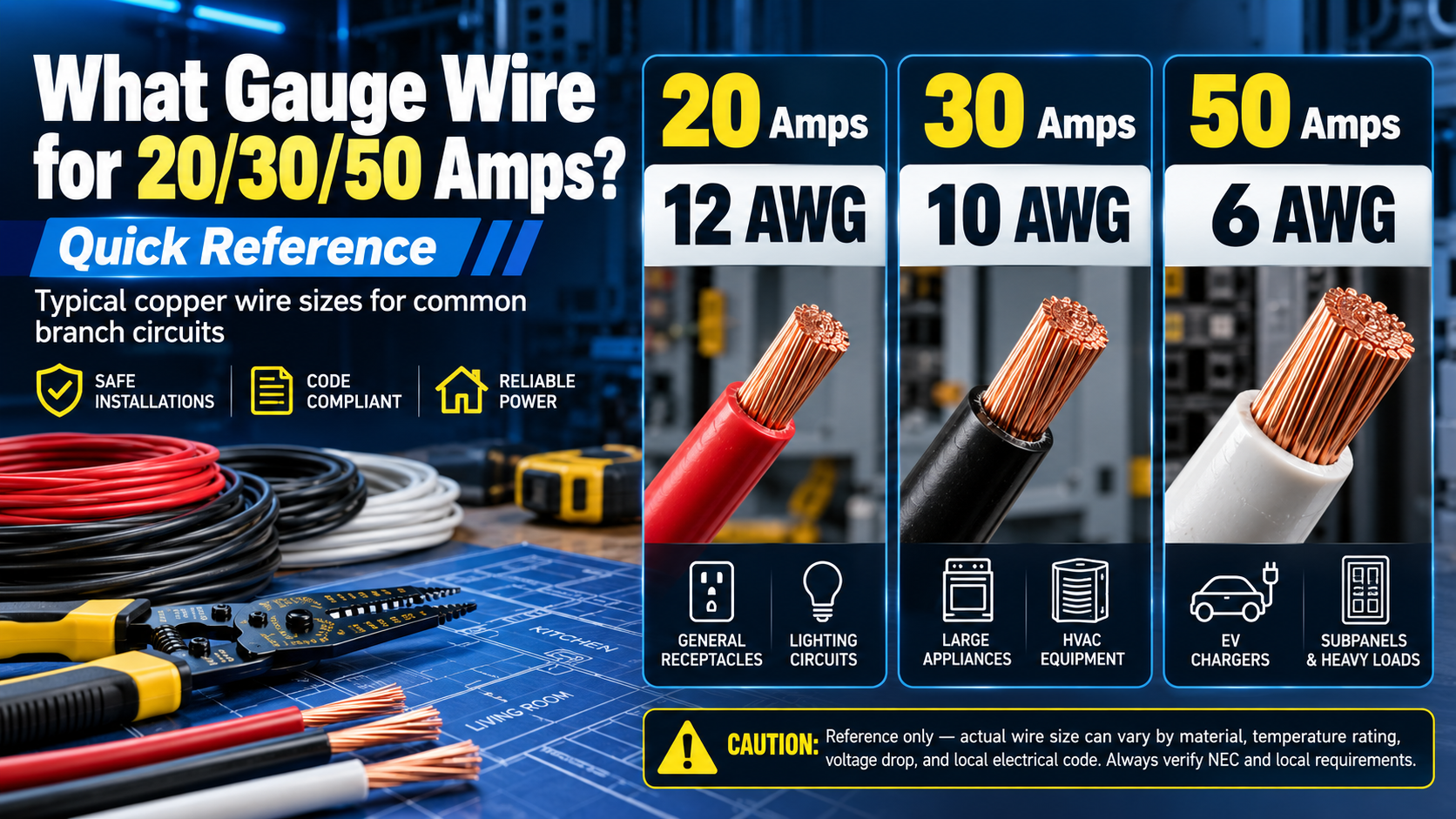

Quick Reference for 20, 30 and 50 Amps

For a simple reference, common copper wire sizes are:

●     20 amps — 12 AWG

●     30 amps — 10 AWG

●     50 amps — 6 AWG

These sizes are commonly used as a starting point. They should not be treated as a one-size-fits-all answer for every electrical installation.

Why Is the Right Wire Size Important?

The wire carries electricity from the power source to the equipment. It needs to be able to handle the amount of current being used.

If a wire is too small for the load, it can become too hot. Over time, this can damage the insulation and create a safety risk.

Using a wire that is much larger than needed is not always the best answer either. It can cost more and may not fit properly into terminals or other parts of the electrical system.

The idea is to choose a wire that is suitable for the circuit rather than simply choosing the largest option.

Does the Length of the Wire Matter?

Yes, it can.

Electricity can lose some voltage as it travels through a long wire. This is known as voltage drop.

For a short run, this may not be a major concern. But if you are running wire over a long distance, the voltage drop can become more noticeable.

In some cases, a larger wire may be needed to reduce this drop. If your project has a long cable run, it is better to check the voltage drop instead of relying only on a basic wire-size chart.

Does the Wire Material Make a Difference?

Yes. The material of the conductor can affect the wire size.

Copper is commonly used for electrical wiring because it conducts electricity well. Aluminium is also used in some electrical applications and has the advantage of being lighter.

However, copper and aluminium do not always use the same wire size for the same application. So, if you are using aluminium, check the manufacturer's information and the applicable requirements rather than simply using the copper size.

What Does the Breaker Have to Do With It?

The circuit breaker is there to protect the electrical circuit. It helps stop the flow of electricity if the current becomes too high.

The wire and breaker need to work together. The wire must be suitable for the circuit and the protection provided by the breaker.

For example, when choosing the wire size for 20 amp breaker, you should not look at the 20 amp rating alone. The wire material, length, installation conditions, and type of load also matter.

The same applies to 30 amp and 50 amp circuits.

Think About What You Are Powering

The equipment connected to the circuit also matters.

A simple appliance may have different requirements from a motor, heater, air conditioner, or other high-power equipment.

Some appliances also come with their own wiring instructions. These instructions should be checked before starting the installation.

If the project involves heavy equipment or you are not confident about the wiring, it is better to get help from a qualified electrician.

Do Not Rely Only on a Quick Chart

A wire-size chart is useful when you want a quick idea of what size is commonly used. However, it does not cover every situation.

The right size can depend on the current, wire material, cable length, temperature, installation method, type of load, and local electrical rules.

So, use a chart as a starting point, but check the full requirements before making a final choice.

Final Thoughts

For a quick reference, 12 AWG copper wire is commonly used for many 20 amp circuits, 10 AWG for many 30 amp circuits, and 6 AWG for many 50 amp circuits.

But these are general examples, not fixed answers for every project. Always consider the wire length, material, equipment, installation conditions, and local requirements before choosing a wire.

If you need wire or cable for your project, Global Cable and Wire offers different options to choose from. You can also get 5% off on all orders, which may be helpful when buying supplies for a larger electrical project.

FAQs

1. What wire size is commonly used for a 20 amp circuit?

12 AWG copper wire is commonly used for many 20 amp circuits. The actual requirement can depend on the installation and other factors.

2. What is the common 30 amp wire size?

10 AWG copper wire is commonly used for many 30 amp circuits. However, always check the requirements of your particular installation.

3. What wire size is commonly used for 50 amps?

6 AWG copper wire is commonly used for many 50 amp applications. The required size can change depending on the equipment and installation.

4.  Does the length of the wire affect its size?

Yes. Long wire runs can have more voltage drop. Depending on the length and load, a larger wire may be needed.

5.  Can I choose the wire size only by looking at the breaker?

No. The breaker rating is important, but it is not the only thing to consider. Wire material, length, installation method, temperature, load, and local requirements should also be checked.
