Aluminum Quadruplex Cable vs Triplex Cable: Key Differences Explained

Making a decision the right one from aluminum quadruplex cable or triplex cable involves more than simply the comparison of conductor sizes or costs. While both cables are extensively used in power distribution electrically however, they are typically constructed for different electrical systems and requirements for projects.

Triplex cable typically has two phase conductors as well as a neutral conductor, which makes it a common option as a power distribution system that is single-phase. It typically has three phase conductors, as well as one neutral conductor, making it better suited to the electrical system with three phases.

Both types of cable are available in overhead service-drop as well as underground distribution for residential use. However, overhead cable and underground cable aren't automatically interchangeable because they share the same number of conductors.

This guide will explain the main distinctions between the aluminum triplex and quadruplex cable which includes the design, applications conductor configuration and installation conditions, as well as costs, and other various selection factors.

What Is Aluminum Triplex Cable?

The aluminum triplex cable comprises a 3-conductor arrangement that is typically used in single-phase electrical distribution systems.

A typical triplex construction includes:

The neutral could be used as a support messenger in the overhead cables. For an underground URD assembly the neutral and phase conductors are typically connected by a twisted cable that is insulated.

Global Cable and Wire's Triplex overhead cable is specifically designed to deliver electricity from utility lines to a customer weatherhead. The construction used in the published version is 1350-H19 phase conductors made of aluminum cross-linked polyethylene insulation, as well as an unfinished messenger that can be constructed of ACSR, AAC, or 6201 aluminum alloy.

Triplex cable is typically connected to a single-phase 120/240-volt electrical service, but the exact magnitude and application allowed must always be confirmed by the specifications for the product as well as electric system designs.

What Is Aluminum Quadruplex Cable?

Aluminum Qudruplex Cable is a four-conductor cable that is typically used to distribute electrical power in three phases.

The typical cable for quadruplex consists of:

For an overhead, quadruplex services-drop cable, neutral typically is the messenger supporting. In a underground qudruplex URD cable the insulated phase as well as neutral conductors are bundled together to provide underground distribution.

Global Cable & Wire describes its overhead quadruplex cable as one that is designed to provide three-phase power usually via an electric transformer mounted on poles to the consumer's weatherhead. The cable is designed for use at 600 volts or less, but subject to the specific specifications of each product.

Global Cable & Wire also provides quadruplex URD products available in various configurations, including 4-4-4-4-4, 2/0-1/0-2 and larger MCM conductor sizes to support underground secondary distribution.

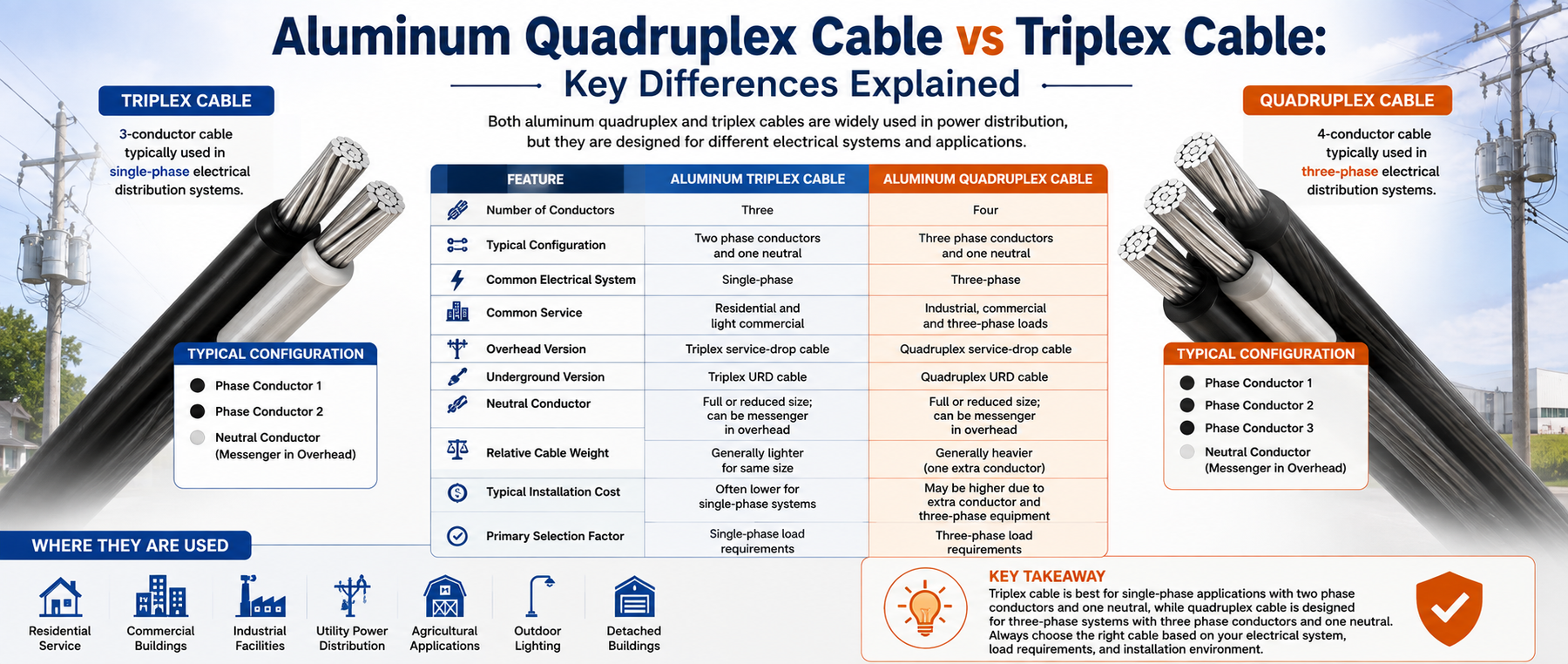

Aluminum Quadruplex Cable vs Triplex Cable: Quick Comparison

The right cables are determined using the electric system and not only based on the cable that is the cheapest.

The Main Difference: Number of Conductors

The most noticeable distinction is the conductor count.

Triplex Cable

Triplex refers to the fact that three conductors are grouped to form a. In a typical power distribution configuration, they include:

This configuration is extensively utilized to supply single-phase power for houses, detached structures farms, homes, and commercial properties that are light in size.

Quadruplex Cable

Four conductors are joined together. Common configurations include:

This arrangement is compatible with the use of a four-wire, three-phase electrical system.

The second phase conductor is the primary distinction between the two types of cables.

Single-Phase vs Three-Phase Power

The understanding of the electricity system is crucial when making a comparison between cables that are triplex vs the quadruplex cable.

Triplex Cable for Single-Phase Power

Single-phase power is typically employed in homes as well as smaller facilities.

A typical single-phase 120/240-volt circuit includes two conductors that are energized with one neutral. The voltage from either conductor to neutral is typically 120 volts. However, the difference in voltage across the two conductors typically is at 240 Volts.

Single-phase systems typically provide power to:

Triplex cable usually has the three conductors required for this kind of system.

Quadruplex Cable for Three-Phase Power

Three-phase power makes use of three conductors that are energized and have phase connections that provide more power continuously than a single-phase equivalent system.

Neutral conductors can also be used in the event that the system is required to supply phase-to neutral loads, lighting, receptacles, control and other equipment.

The three-phase systems typically serve:

The Quadruplex cable is equipped with three-phase conductors as well as neutral needed for many three-phase four-wire distribution systems.

The system conductor and voltage requirements differ. The electrical engineer or electrician, utility provider or project specifications must verify the correct configuration of the cable.

Overhead Triplex vs Quadruplex Service-Drop Cable

Both cables, triplex and quadruplex are available for overhead installations.

Triplex Overhead Service-Drop Cable

Triplex overhead cable made of aluminum is utilized to transfer single-phase power from the pole-mounted transformer to the structure's power point.

The typical overhead cable consists of two aluminum conductors that are insulated and wrapped around a neutral messager.

The messenger will provide:

Global Cable and Wire's overhead triplex cable is constructed with XLP-insulated aluminum phase conductors as well as a bare messenger. The cable is designed to be used at 600 volts or less in accordance with the product's specifications.

Southwire also describes triplex service-drop cables as a neutral-supported cable that is which is connected to a pole-mounted transformer as well as the customer's own service head.

Quadruplex Overhead Service-Drop Cable

Aluminum overhead cable quadruplex is used primarily to distribute power across three phases of the aerial.

It usually comprises three aluminum phase conductors that are insulated wrapped around a neutral messenger.

Common applications are:

Southwire's quadruplex construction for service-drops uses 1350-H19 aluminum conductors that are stranded with Polyethylene and XLPE insulation. The neutral messenger options are aluminum alloy 6201 AAC, ACSR, or.

Cables for overhead triplex and quadruplex should be installed using the required clearances, supports and sag equipment termination equipment, as well as utility approval.

Underground Triplex vs Quadruplex URD Cable

The cables triplex and quadruplex may also be found as an underground distribution cables for residential use, often known as URD cable.

Aluminum Triplex URD Cable

URD cable made of aluminum typically contains two conductors with two phases and a neutral conductor that is twisted together.

It can be used to:

Global Cable and Wire's 4-4-5 Vassar triplex URD cables utilizes 1350 series aluminum conductors, which have XLPE insulation. The product's specifications specify distinct ampacity ratings for direct burial and inside-duct installations.

Aluminum Quadruplex URD Cable

Quadruplex URD cables made of aluminum typically has three phase conductors as well as a neutral conductor.

It is usually regarded as:

Global Cable & Wire lists several quadruplex URD direct burial options that include reduced neutral and full-size configurations.

Even if a product is described as a direct burial cable, its installer should examine the depth of burial conduit specifications as well as utility requirements, the conductor rating and any applicable electrical codes.

Full-Size vs Reduced Neutral

The cable that is quadruplex or triplex could contain an all-size neutral or smaller neutral.

Examples include:

A neutral with a reduced voltage is an appropriate option if calculations from engineering show that the neutral can have less current than conductors of the phase.

A neutral of full size may be necessary if the system is characterized by significant phase-to-neutral load, equipment that is nonlinear harmonic currents or other situations that can increase the neutral load.

The size of the neutral cable should not be based solely on looking at the cost of cables. It must be determined based on load calculations, design specifications, project specifications, and relevant codes.

Conductor and Insulation Construction

The cables of triplex and quadruplex could use the same conductor or insulation components.

Aluminum Conductors

Many distribution cables used by utilities utilize 1350-series electrical grade aluminum. Some cable configurations might make use of AA-8000 series aluminum alloy.

Aluminum provides many benefits:

XLPE Insulation

Cross-linked polyethylene (XLPE) is commonly used to make underground and overhead conductors of aluminum.

Based on the type of product, XLPE insulation can provide resistance to:

The exact temperature as well as wet-location, sunlight resistance, and installation ratings must be confirmed by the specifications of the manufacturer.

Cable Size Markings Explained

The size of the cable indicates the configuration of the conductor.

2-2-2 Triplex Cable

A 2-2-2 triplex cable typically comprises:

4/0-4/0-2/0 Triplex Cable

This is a typical configuration that includes:

2-2-2-4 Quadruplex Cable

This is a typical configuration that includes:

4/0-4/0-4/0-2/0 Quadruplex Cable

The most common configurations include:

Trade names like Conch, Vassar, Dyke, Palomino, Wake Forest as well as Notre Dame may identify particular conductor configurations. Buyers must verify the size of neutral and phase rather than relying solely on the name of the company.

Weight, Handling, and Installation

In the same size phase-conductor the quadruplex cable is typically heavier than triplex because it has one additional conductor.

The additional conductor may impact:

Triplex cable is likely to be simpler to manage when only single-phase power is required. However, substituting triplex with quadruplex isn't a viable option to save money in projects that require three-phase power.

Cost Differences

The price of aluminum cable, including quadruplex and triplex is based on:

The cable with a quadruplex will typically have an expense for materials that is higher than the equivalent triplex cable due to the fact that it is made up of one additional conductor.

The cable cost is just one aspect of the overall cost. Equipment such as labor, trenching conduits, poles, terminations and transformers, switchgear and utilities will have an impact on the overall budget for installation.

Which Cable Should You Choose?

Use triplex cable only when:

Select a quadruplex cable if:

The final choice should be determined by:

Common Selection Mistakes

Choosing by Conductor Size Alone

A triplex cable of 2 AWG and the quadruplex cable of 2 AWG are not the same. The quadruplex bundle includes a different conductor, and is typically utilized for a different system configuration.

Confusing Overhead and Underground Cable

Overhead service-drop cables should not be installed unless specifically rated for the particular installation. URD cable should not be automatically be used to support aerial installations.

Assuming Every URD Cable Can Enter a Building

Certain distribution cables from utilities have restrictions regarding where they can be used. Make sure that the conductors have the necessary USE-2 or RHH or service-entrance ratings for the installation you are planning to install.

Selecting the Neutral Without Load Calculations

The neutral could be reduced or full-sized The correct size is determined by the load on the system and the engineering requirements.

Ignoring Aluminum Termination Requirements

Aluminum cable should be installed with connectors, terminals and other equipment specifically designed as conductors made of aluminum. Installers must also adhere to the instructions of the manufacturer of the equipment for specifications for preparation and torque.

Order Aluminum Triplex and Quadruplex Cable

Global Cable & Wire offers triplex and quadruplex cables made of aluminum for power distribution in underground and overhead applications.

The categories of products that are available include:

Before you place an order, be sure to confirm the configuration of the conductor the installation location, the voltage rating, system phase ampacity, neutral size and footage required.

Final Comparison

The major distinction between aluminum triplex and quadruplex cables can be seen in the conductors, as well as the electrical system that each cable typically accommodates.

Triplex cable is composed of three conductors, and is typically employed to power single-phase systems. The cable is made up of four conductors, and is typically employed for three-phase power.

Both kinds can be made to be used in underground or overhead applications. Therefore, purchasers must determine not only if they require the triplex or quadruplex cables however, they must also determine if the project calls for overhead service-drop cable or underground URD cable, direct burial certification, installation of ducts or any other specific rating.

The right choice of cable will ensure safe power distribution proper equipment operation, code compliance and long-term performance.

Frequently Asked Questions

What is the most significant distinction between quadruplex and triplex cable?

Triplex cable is made up of three conductors, whereas quadruple cable has four. Triplex is typically used for single-phase systems, while Qudruplex is usually used in three-phase systems.

Does triplex cable come with neutral?

Yes. An average triplex power cord has two conductors with phase change and a neutral conductor.

Does quadruplex cable have a neutral?

Yes. The typical quadruplex cable consists of three phase conductors, as well as one neutral conductor.

Triplex cable is used to provide electric service for homes?

Triplex cable is typically utilized for single-phase residential utility services which includes overhead service drops as well as underground distribution.
